Perfectly matched to your separation task, machine size, and specific needs.
HILLER offers four customized drive systems for decanters, ranging from fully electric to fully hydraulic concepts. Each system delivers high torque, making it ideal for demanding separation processes. All HILLER drive concepts are characterized by easy operation, high reliability, and a high torque of the scroll drive. All drive variants are also available in ATEX versions for use in explosive zones.

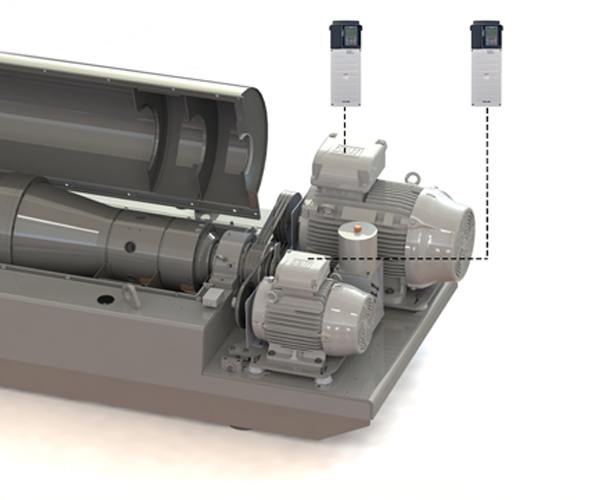

BOWL DRIVE: Electric motor with frequency converter control; bowl drive via V-belt
SCROLL DRIVE: Electric motor with frequency converter control; generation of the differential speed with planetary gears; Power supply to the scroll frequency converter via intermediate circuit; Scroll speed dependent on bowl speed.
SCROLL DRIVE: Electric motor with frequency converter control; generation of the differential speed with FSG-Drive gears; Bowl and scroll drives are decoupled

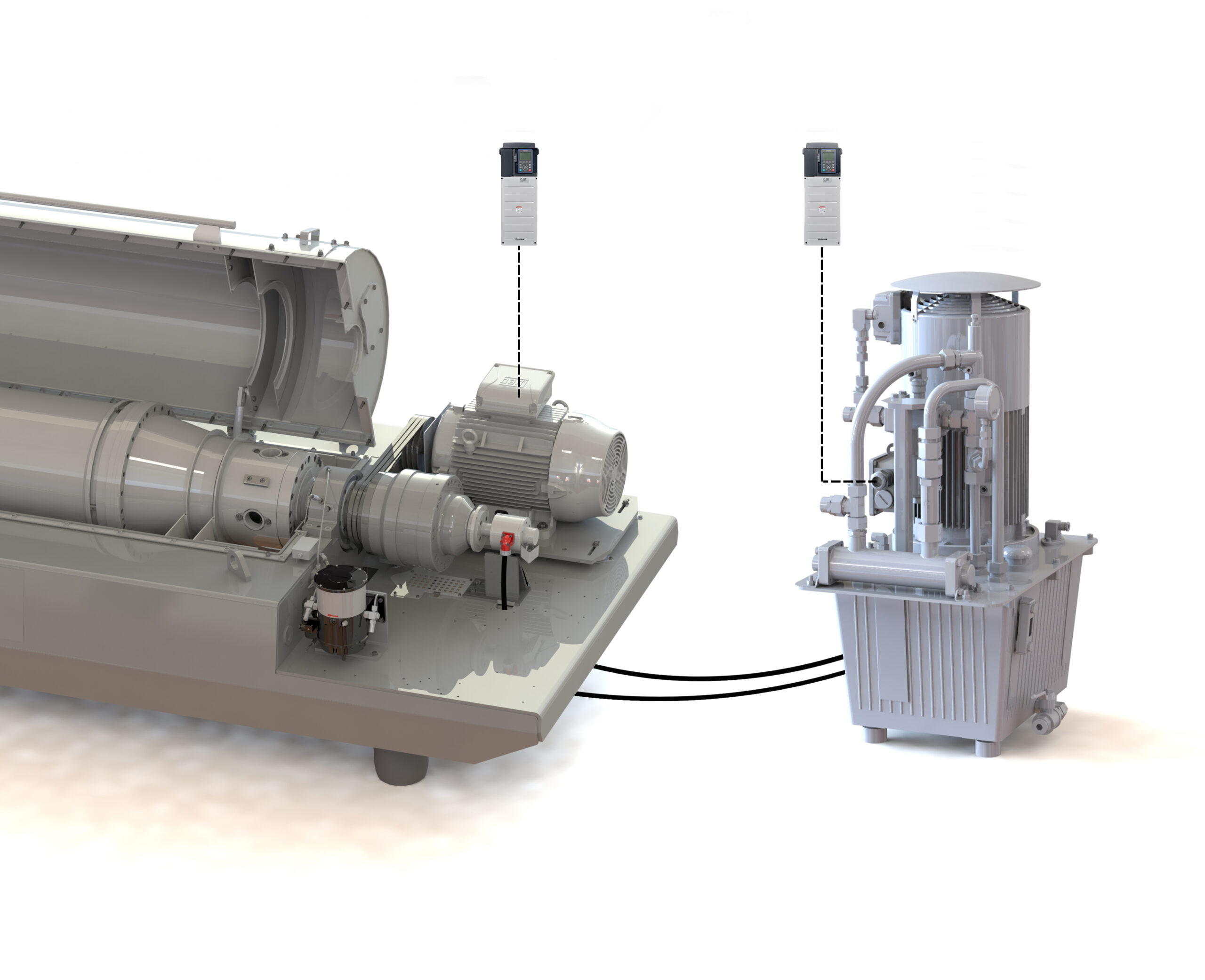

SCROLL DRIVE: hydraulic motor and hydraulic unit supplied via rotary connector; optional frequency converter controlled, energy efficient unit
Bowl and scroll drives are decoupled

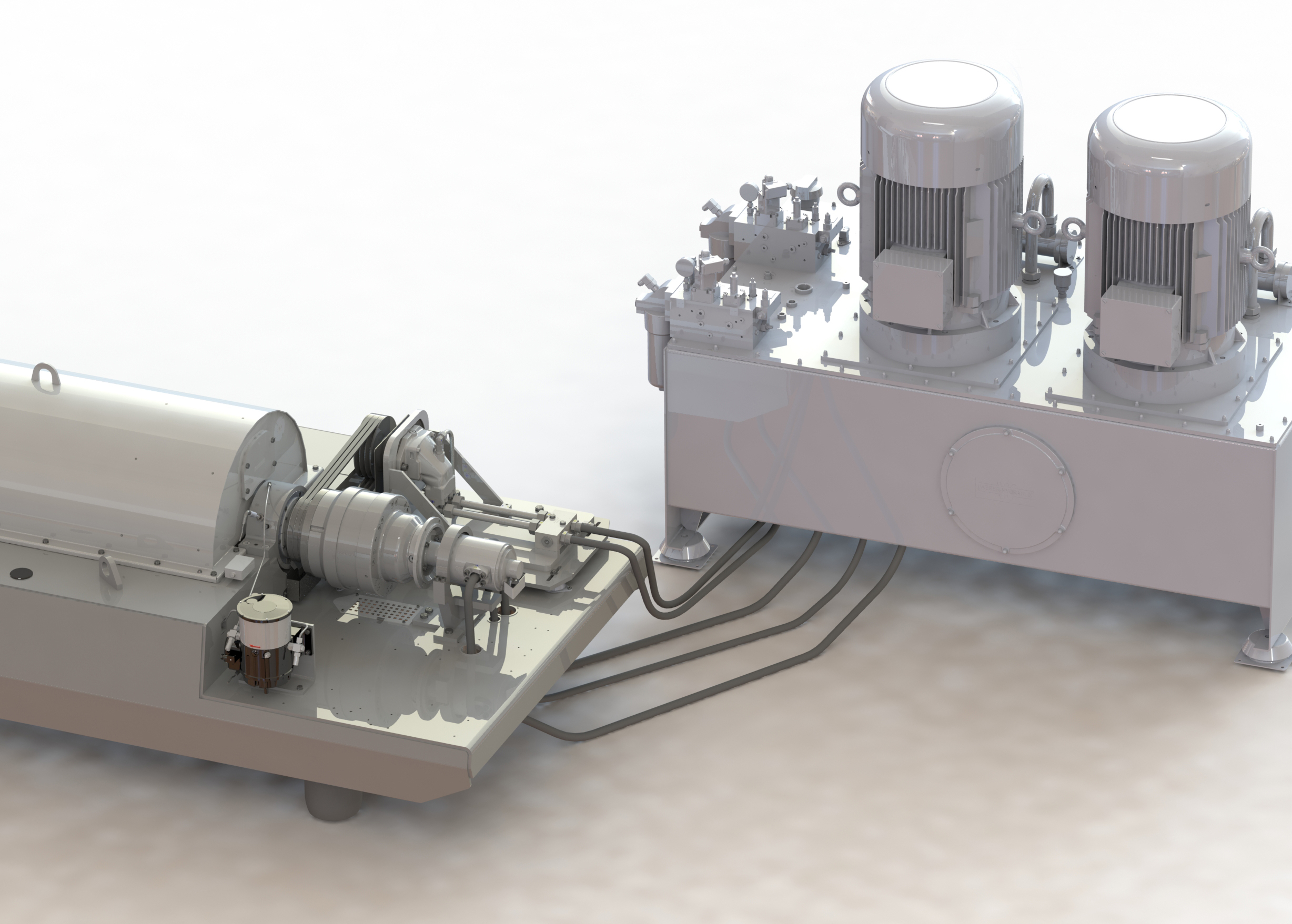

BOWL DRIVE: hydraulic motor supplied via rotary connector; driven by V-belt
SCROLL DRIVE: hydraulic motor supplied via rotary connector; One hydraulic unit (fully hydraulic) Bowl and scroll drives are decoupled
All HILLER drive systems are equipped with the electronic control system SEE-Control Pro. It allows for complete control of the centrifuge, including all electronic instruments.
